Reference Clock Measurements

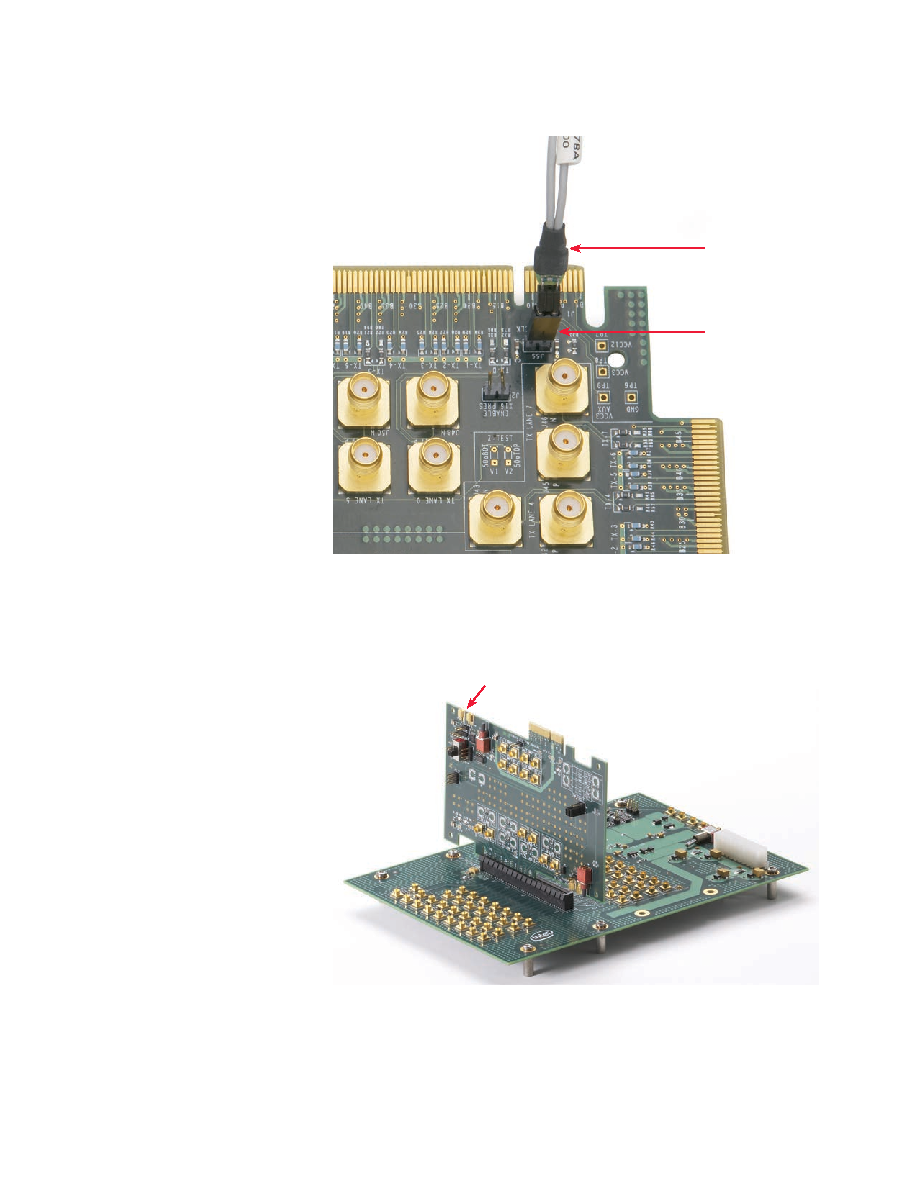

InfiniiMax 1169A probe with

E2678A socket adapter

attached to CLB

Note 2pF capacitors added

to CLB to create REFCLK

compliance load as per spec

Figure 22. The N5393D software includes important tests for the reference clock of your

PCI Express system. This signal can be probed using the Keysight InfiniiMax 1169A probes in

conjunction with the PCI-SIG’s compliance load board.

Reference clock test connection using CLB2

Figure 23. This shows the CLB2 inserted into the CBB2 test fixture, representing the setup required

to test add-in cards.

The PCI Express 1.0a specification

failed to specify the input bandwidth

the reference clock receiver or phase

jitter of the reference clock itself. This is

important because jitter that lies within

the loop bandwidth the receiver PLL for

the reference clock will transfer onto the

high speed data lines. This hole in the PCI

Express specification was corrected in the

1.1 update.

The N5393D includes powerful reference

clock evaluation tools including phase

jitter. The PCIe 1.1 specification calls

for a very specific phase jitter filter that

focuses the measurement on the jitter that

lies between 1.5 and 22-MHz. The filter

also amplifies the jitter 3 dB (peaking)

within this region. The Keysight N5393D

includes proprietary filtering software

(patent pending) that exactly implements

the filters specified in the PCI Express

specification. The N5393D also includes

reference clock tests based on the PCIe

2.0 and 3.0 specification.

Utilizing Keysight’s InfiniiMax 1169A high

performance differential probes, or direct

cabled connections, you can measure

your reference clock using the PCI-SIG’s

Compliance Load Board or custom test

fixture.

– Reference clock tests

– Phase jitter

– Rising edge rate

– Falling edge rate

– Differential input high voltage

– Differential input low voltage

– Average clock period

– Duty cycle
