ASIX ELECTRONICS CORPORATION

6

AX88658AB 8-Port 10/100/1000BASE-T Ethernet Switch

CONFIDENTIAL

1.0 AX88658A Overview

1.1 General Description

The AX88658A Gigabit switch controller supports eight 10/100/1000 Mbps ports in wire-speed operation. The

AX88658A Gigabit switch controller provides eight 10/100/1000 Ethernet ports with RGMII/GMII/MII interface. For

each ports, the AX88658A supports GMII/RGMII (802.3ab, 1000BASE-T) interface with full-duplex operation at

Gigabit speed, full- or half-duplex operation at 10/100 Mbps speed (using 802.3/u, 10/100BASE-T) and polls the status

of PHYs with an embedded MPU.

The device supports 4K internal MAC addresses which are shared by all ports with an embedded SRAM. The

learning/routing engine is implemented with a two-way hash/linear algorithm to reduce possibility of routing collision.

Basically the AX88658A supports non-blocking wire speed forwarding rate and no Head-of-Line (HOL) blocking issue.

The AX88658A provides two flow-control mechanisms to avoid loss of data: an optional jamming based backpressure

flow control in the half-duplex operation and IEEE 802.3x in the full-duplex mode.

To support Quality of Service (QoS), each output port has two priority queues and their assignment can be based on the

802.1p priority field or Port-Pair setting. Each output port retrieves the frames from the shared buffer based on queuing

and sends them to the transmitting (Tx) FIFO.

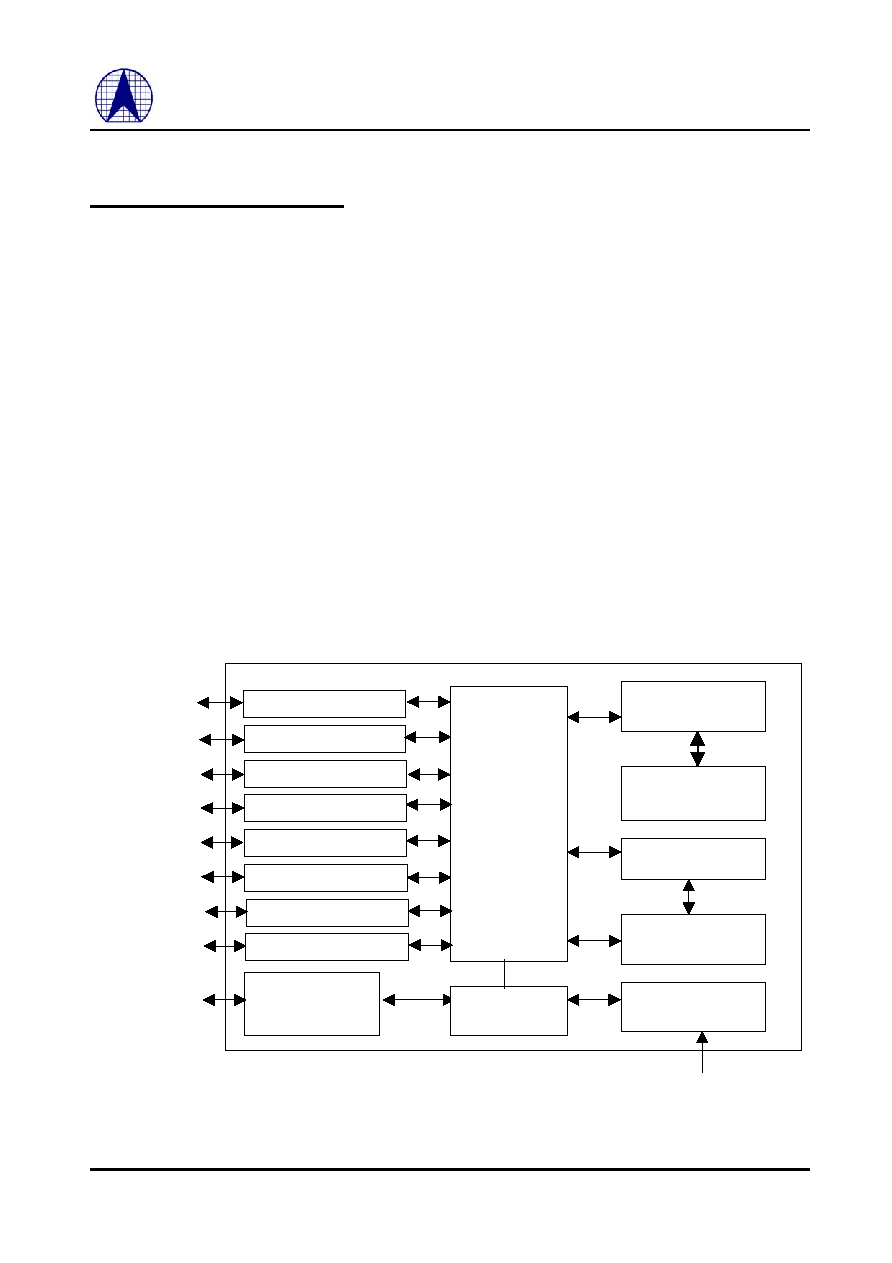

1.2 AX88658A Block Diagram

Fig-1 AX88658A Block Diagram

10/100/1000 MAC

10/100/1000 MAC

10/100/1000 MAC

10/100/1000 MAC

10/100/1000 MAC

High Speed

Switch Fabric

Routing /Learning

Engine

Buffer Manager

Packet

Buffer

General Purpose

I/O Interface (GPIO)

RGMII/GMII PHY

Address Look-up Table

10/100/1000 MAC

10/100/1000 MAC

10/100/1000 MAC

EEPROM

Interface

GPIO

Configuration

Logic

RGMII/GMII PHY

RGMII/GMII PHY

RGMII/GMII PHY

RGMII/GMII PHY

RGMII/GMII PHY

RGMII/GMII PHY

RGMII/GMII PHY
