Section 7 DMA Controller (DMAC)
Rev.1.00 Jun. 07, 2006 Page 345 of 1102
REJ09B0294-0100
The transfer direction is decided by the DIRS bit in DACR which specifies an external device with
the
DACK pin as the transfer source or destination. When DIRS = 0, data is transferred from an
external memory (DSAR) to an external device with the
DACK pin. When DIRS = 1, data is
transferred from an external device with the
DACK pin to an external memory (DDAR). The
settings of registers which are not used as the transfer source or destination are ignored.
The
DACK signal output is enabled in single address mode by the DACKE bit in DMDR. The
DACK signal is low active.
The
TEND signal output is enabled or disabled by the TENDE bit in DMDR. The TEND signal is
output in one bus cycle. When an idle cycle is inserted before the bus cycle, the
TEND signal is
also output in the idle cycle.
Figure 7.5 shows an example of timing charts in single address mode and figure 7.6 shows an
example of operation in single address mode.
LSI
Data flow
External
address
bus
External
data
bus
DMAC
DACK
DREQ
External
memory
External device
with
DACK

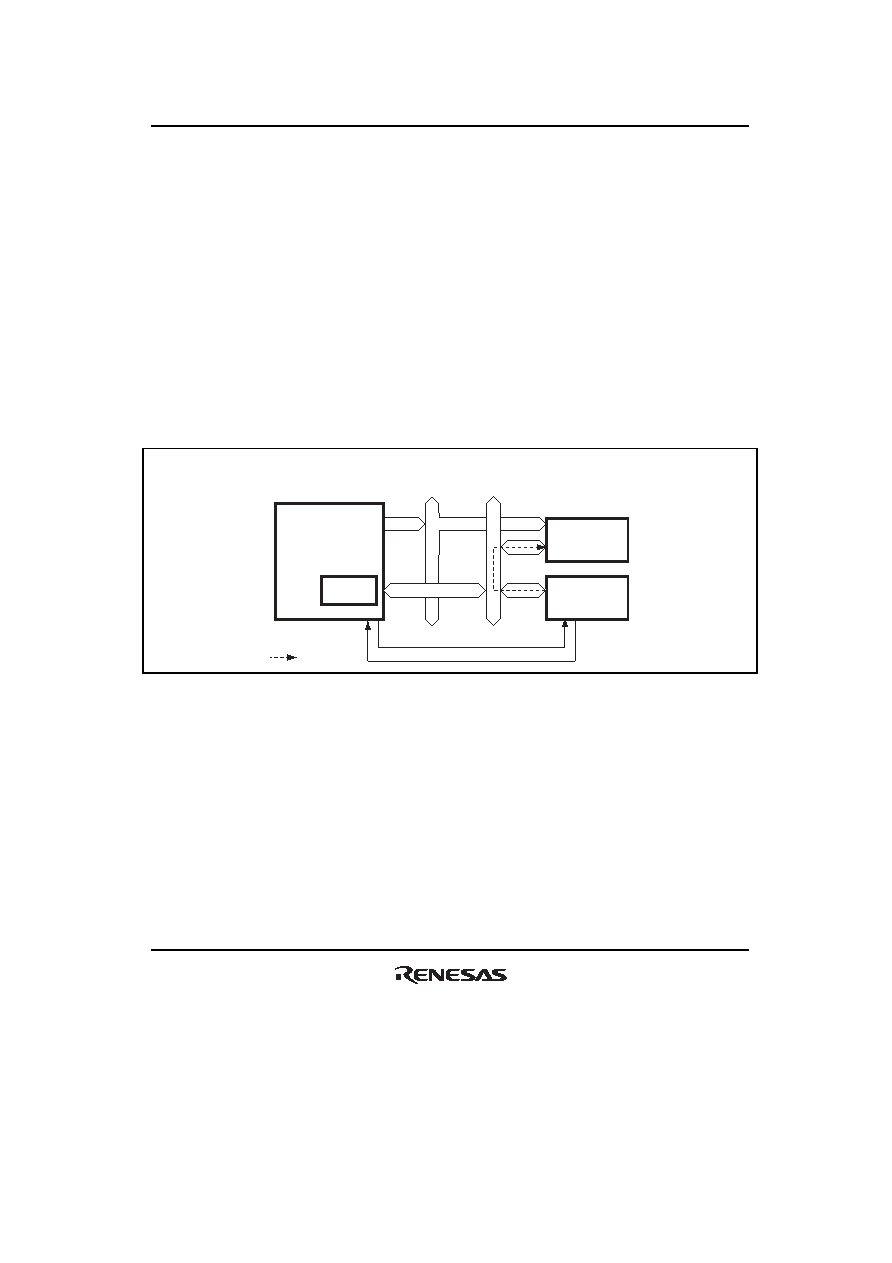

Figure 7.4 Data Flow in Single Address Mode
