LT1680

APPLICATIONS INFORMATION

and a soft start timing capacitor CSS, the start-up delay

time to full available average current will be:

tSS = (1.8)(10

5)(CSS)

Shutdown Function—Input Undervoltage Detect

and Threshold Hysteresis

The LT1680 RUN/SHDN pin uses a bandgap generated

reference threshold of about 1.25V. This precision thresh-

old allows use of the RUN/SHDN pin for both logic-level

shutdown applications and analog monitoring applica-

tions such as power supply sequencing.

Because an LT1680 controlled converter is a power trans-

fer device, a voltage that is lower than expected on the

input supply could require currents that exceed the sourc-

ing capabilities of that supply, causing the system to lock-

up in an undervoltage state. Input supply start-up protection

can be achieved by enabling the RUN/SHDN pin using a

resistor divider from the input supply to ground. Setting

the divider output to 1.25V when the supply is almost fully

enabled prevents the LT1680 regulator from drawing large

currents until the input supply is able to supply the

required power.

If additional hysteresis is desired for the enable function,

an external feedback resistor can be used from the LT1680

regulator output. If connection to the regulator output is

not desired, the 5VREF internal supply pin can be used.

Figure 3 shows an input supply sequencing configuration

on a 24V input converter. This configuration yields an

enable condition of 90% VIN (~21.5V) with about 10%

threshold hysteresis.

The shutdown function can be disabled by connecting the

RUN/SHDN pin to the 12VIN rail. This pin is internally

clamped to 2.5V through a 20k series input resistance and

will therefore draw 0.5mA when tied directly to 12V. This

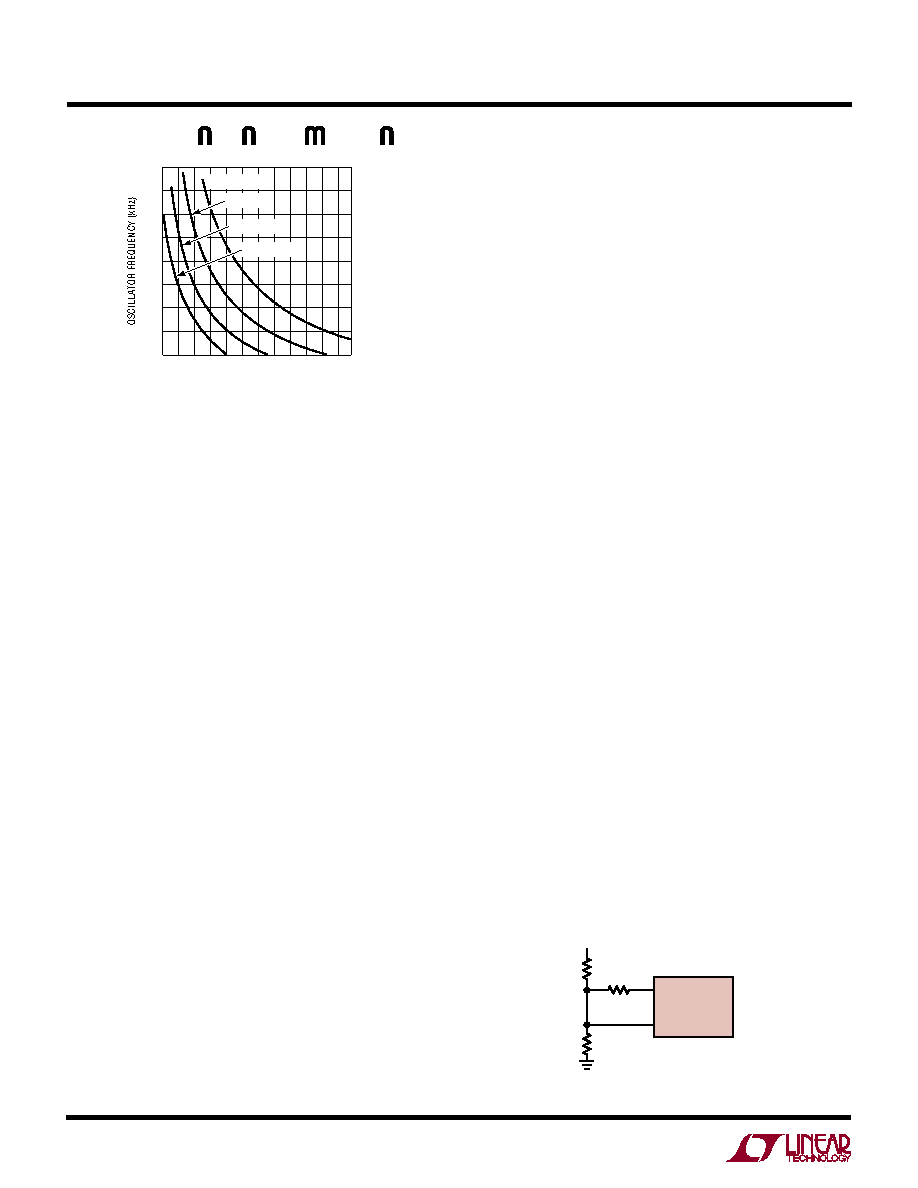

Figure 3. Input Supply Sequencing Programming

TIMING RESISTOR (k

Ω)

7 11 15 19 23 27 31 35 39 43 47

200

180

160

140

120

100

1680 F02

CCT = 0.68nF

CCT = 1nF

CCT = 2.2nF

CCT = 1.5nF

Figure 2. Operating Frequency vs RCT, CCT

Average Current Limit

The average current limit function is implemented using

an external capacitor (CAVG) connected from IAVG to

SGND. This capacitor forms a single pole integrator with

the 50k

Ω output impedance of the IAVG pin. The integrator

corner frequency is typically set 1 to 2 orders of magnitude

below the oscillator frequency and follows the relation:

f–3dB = (3.2)(10–6)/CAVG

The average current limit function can be disabled by

shorting the IAVG pin directly to SGND. In some applica-

tions it is theoretically possible for the average current

limit circuit to overdrive the error amplifier output (VCpin)

beyond the operating range of the current sense compara-

tor. These applications include those where open-loop

system operation occurs, such as boost regulators in

output short-circuit condition, or in systems with poor

signal ground integrity. The potential for this overdrive can

be eliminated by connecting an external clamp diode

between the IAVG and VC pins (anode to IAVG and cathode

to VC). Connection of this diode will have no adverse

effects in any system and is recommended. This clamp is

required for all boost converter topologies.

Soft Start Programming

The LT1680 current control pin (VC) limits inductor cur-

rent to zero at voltages less than

≈0.7V through full

average current limit at VC ≈ 2.5V, yielding 1.8V over the

full regulation range of average load current. With the SS

pin at 0V, the VC pin is clamped to its zero inductor current

level. Given the typical soft start charge current of 10

µA

VIN

24V

160k

390k

10k

1680 F03

5VREF

RUN/SHDN

LT1680
