POE-D10-00-E-13

SAFETY STANDARDS REGULATED, REINFORCED

INSULATION TYPE, AH SERIES

Ver: 13

Page: 11 / 18

Items

Performance

Testing method

Tensile

Lead wire shall not cut off.

Capacitor shall not be

broken.

With the termination in its normal position, the specimen is

held by its body in such a manner that the axis of the

termination is vertical; the tensile force of 10N shall be

applied to the termination in the direction of its axis and

acting in a direction away from the body of the specimen.

7.3.9

Robustness

Terminations

Bending

Lead wire shall not cut off.

Capacitor shall not be

broken.

With the termination in its normal position, the specimen is

held by its body in such a manner that the axis of the

termination is vertical; a mass applying a force of 5N is then

suspended from the end of the termination. The body of the

specimen is then inclined, within a period of 2 to 3sec,

through an angle of approximately 90

∘in the vertical plane

and then returned to its initial position over the same period

of time; this operation constitutes one bend. One bend

immediately followed by a second bend in the opposite

direction.

Appearance No marked defect.

I.R.

1000 M

min.

Dielectric

Strength

Per item7.3. 3

7.3.10

Soldering

Effect

(Non-Preheat)

Capacitance

Y5P,Y5U,Y5V：

Within ±10 %

SL,CH:

Within±2.5﹪or

±0.25pF,Whichever is large.

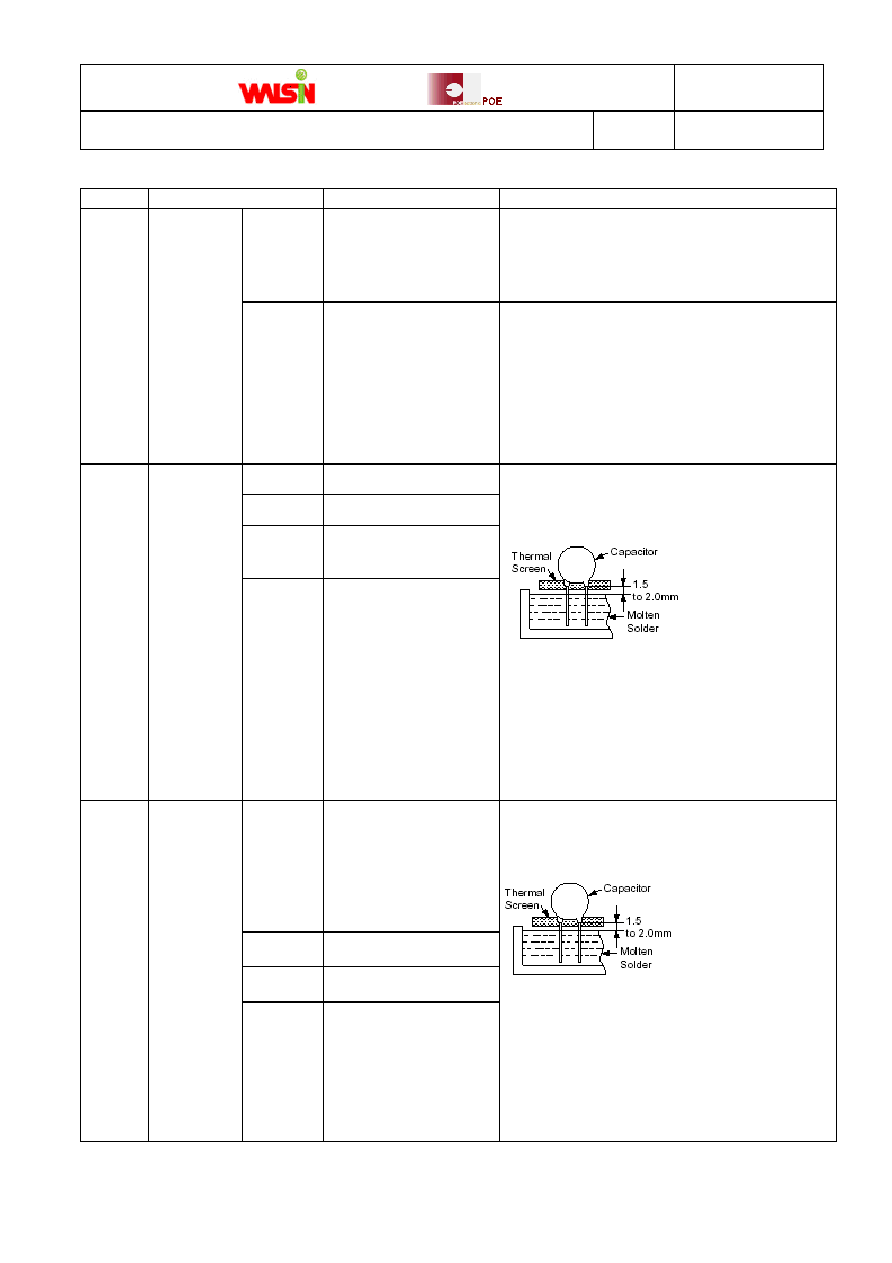

As shown in figure, the lead wires should be immersed in

solder of 350 ± 10

or 260 ± 5

up to 1.5 to 2.0 mm from

℃

the root of terminal for 3.5 ± 0.5 sec ( 10 ± 1 sec. for 260 ± 5

℃

Pre-treatment:

Capacitor shall be stored at 85±2

for 1hour.then placed

℃

※ room condition for 24±2hours before initial

measurements.

Post-treatment:

Capacitor shall be stored for 1 to 2hours at

※ room

condition.

Appearance No marked defect.

I.R.

1000 M

min.

Dielectric

Strength

Per item 7.3.3

7.3.11

Soldering

Effect

(On-Preheat)

Capacitance

Y5P,Y5U,Y5V：

Within ±10 %

SL,CH:

Within±2.5﹪or

±0.25pF,Whichever is large.

First the capacitor should be stored at 120+0/-5

for 60

℃

+0/-5 sec.

Then , as in figure , the lead wires should be immersed solder

of 260+0/-5

up to 1.5 to 2.0 mm from the root of terminal

℃

for 7.5+0/-1 sec.

Pre-treatment:

Capacitor shall be stored at 85±2

for 1hour.then placed

℃

※ room condition for 24±2hours before initial

measurements.

Post-treatment:

Capacitor shall be stored for 1 to 2hours at

※ room

condition.
