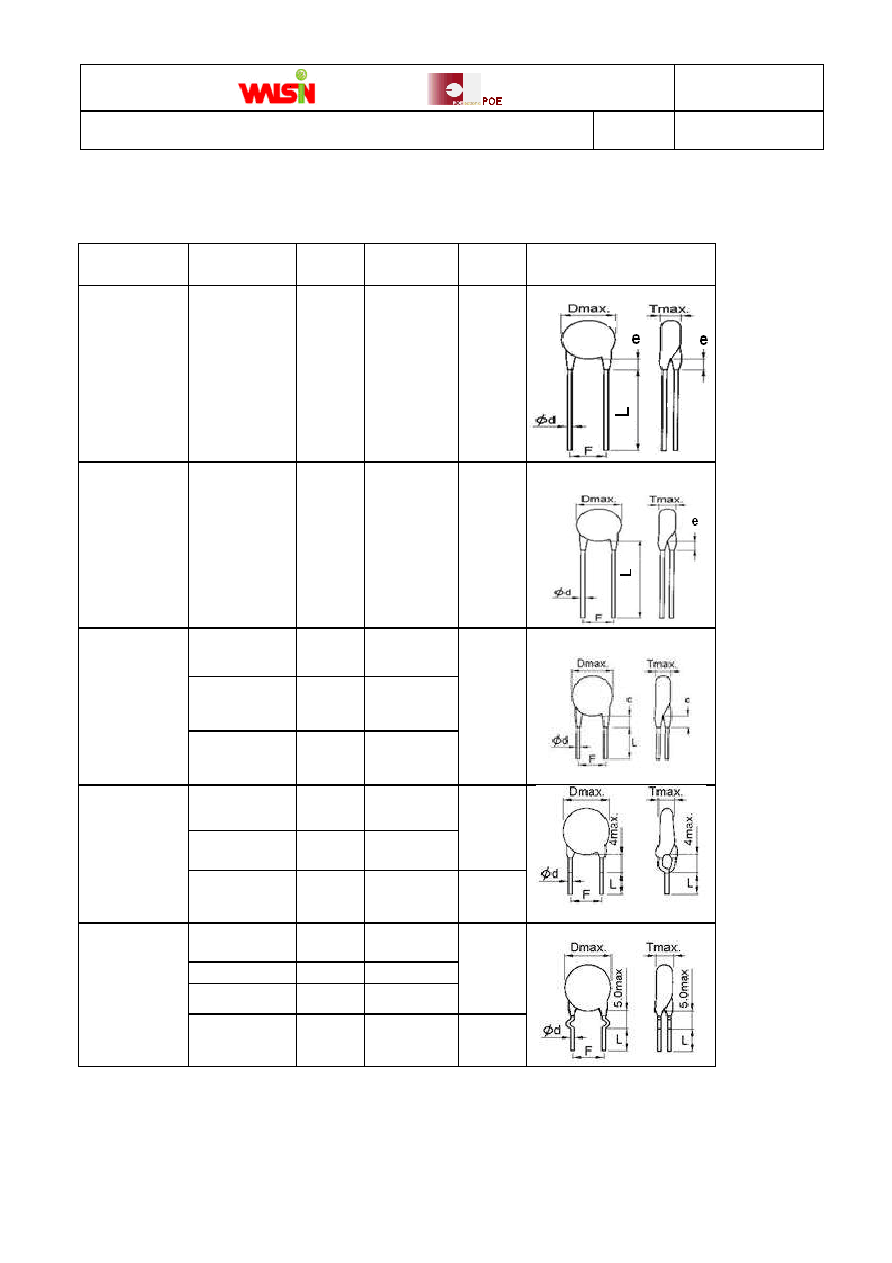

POE-D10-00-E-13
SAFETY STANDARDS REGULATED, REINFORCED
INSULATION TYPE, AH SERIES
Ver: 13
Page: 5 / 18
2. Mechanical:
Encapsulation：Epoxy resin, flammability UL94 V-0
Available lead code (unit: mm):
Lead type
SAP P/N
(13-17)digits
Pitch
(F)
Lead
Length (L)
Packing
Lead Configuration
Lead style：L
Type L
Straight long
lead
L20C0
10 ± 1.0
20 min.
Bulk
Lead style：B
Type B
Straight long
lead
BAMD0
10 ± 1.0
Refer to “4.
Taping
format”
Tap.
Ammo
L03B0
10 ± 1.0
3.0 ± 1.0
L4EB0
10 ± 1.0
4.5 ± 1.0
Lead style：L
Type L
Straight short
lead
L05B0
10 ± 1.0
5.0 ± 1.0
Bulk
D3EA0
10 ± 1.0
3.5 ± 0.5
D04A0
10 ± 1.0
4.0 ± 0.5
Bulk
Lead style：D
Type D
Vertical kink
lead
DAMD0
10 ± 1.0
Refer to “4.
Taping
format”
Tap.
Ammo
X3EA0
10 ± 1.0
3.5 ± 0.5
X04A0
10 ± 1.0
4.0 ± 0.5
X05B0
10 ± 1.0
5.0 ± 1.0
Bulk
Lead style：X
Type X
Outside kink lead
XAMD0
10 ± 1.0
Refer to “4.
Taping
format”
Tap.
Ammo
* Lead diameter Φd: 0.55 +/-0.05mm
*
e (Coating extension on leads): 3.0mmMax for straight lead lead style, not exceed the kink for kink lead.
