POE-D10-00-E-13

SAFETY STANDARDS REGULATED, REINFORCED

INSULATION TYPE, AH SERIES

Ver: 13

Page: 7 / 18

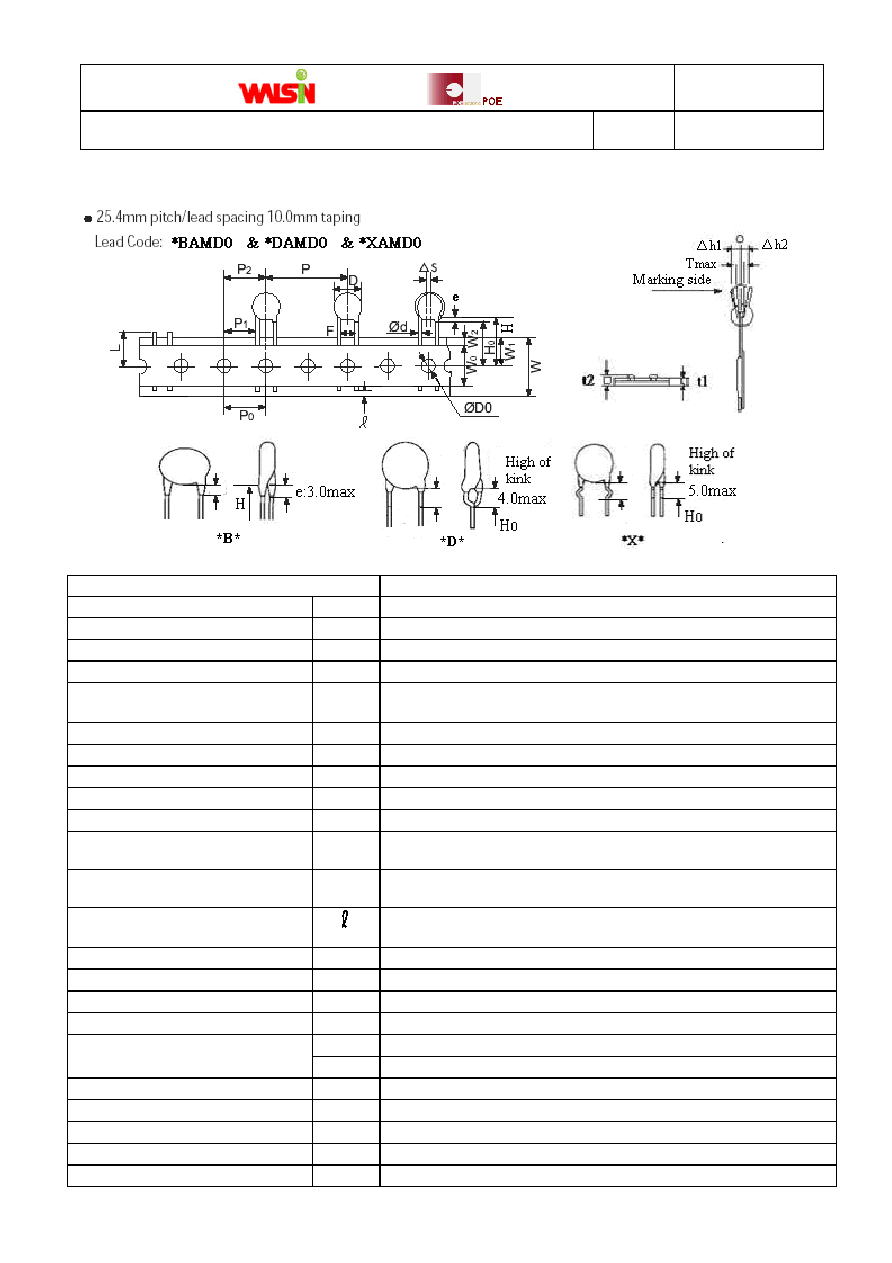

4. Taping Format:

POE Part Number

*BAMD0 / *DAMD0 / *XAMD0

Item

Symbol

Dimensions(mm)

Pitch of component

P

25.4 ± 2

Pitch of sprocket

P0

12.7 ± 0.3

Lead spacing

F

10.0 ± 1.0

Length from hole center to component

center

P2

12.7 ± 1.5

Length from hole center to lead

P1

7.7 ± 1.5

Body diameter

D

See the “3. Part numbering/T.C/Capacitance/ Tolerance/Diameter”

Deviation along tape, life or right

S

△

0 ± 2.0

Carrier tape width

W

18.0 +1/ -0.5

Position of sprocket hole

W1

9.0 ± 0.5

Lead distance between the kink and

center of sprocket hole

H0

18.0 +2.0/-0

(For: *DAMD0 & *XAMD0)

Lead distance between the bottom of

body and the center of sprocket hole

H

20.0+1.5/-1.0

(For: *BAMD0)

Length from the terminal of the lead

wire to the edge of carrier tape

Diameter of sprocket hole

D0

4.0 ± 0.2

Lead diameter

φd

0.55 ±0.05

Total tape thickness

t1

0.6 ± 0.3

Total thickness, tape and lead wire

t2

1.5 max.

h1

△

2.0 max.

Deviation across tape

h2

△

2.0 max

Portion to cut in case of defect

L

11.0 max.

Hole-down tape width

W0

8.0 min

Hole-down tape distortion

W2

1.5 ± 1.5

Coating extension on leads

e

3.0 max for straight lead style; Not exceed the kink leads for kink lead.

Body thickness

T

See the “3. Part numbering/T.C/Capacitance/ Tolerance/Diameter”
