For a more thorough primer on antennas,
please refer to Application Note AN003
SRD Antennas available on Chipcon’s
web site.
20. Package Description (TQFP-64)

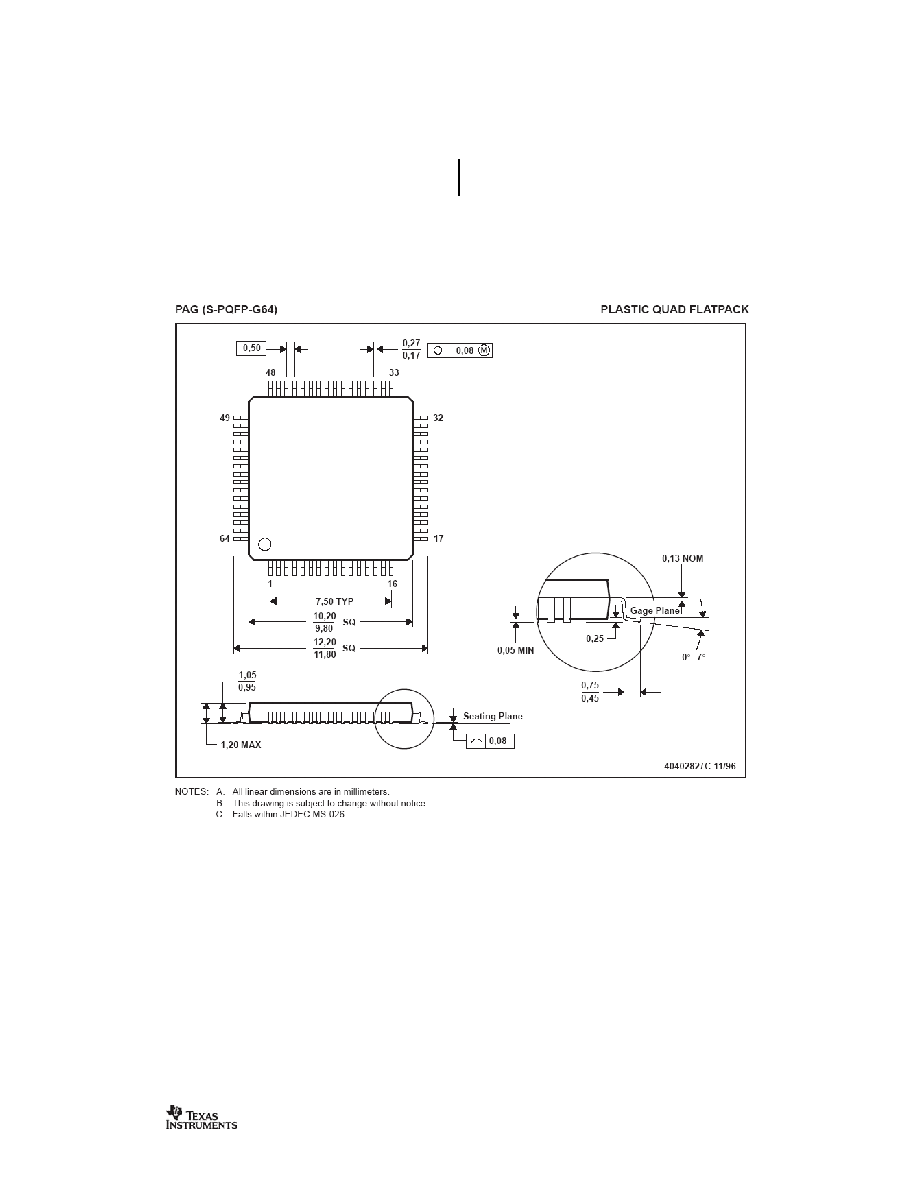

CC1010 is packaged in a TQFP-64 package. The package is shown in Figure 45. Please note
that the drawing in Figure 45 is not to scale.
Figure 45. TQFP-64 package
21. Soldering Information
The recommended soldering profiles for both leaded and Pb-free packages are according to
IPC/JEDEC J-STD-020.
