Data Sheet

SSM4567

Rev. 0| Page 43 of 52

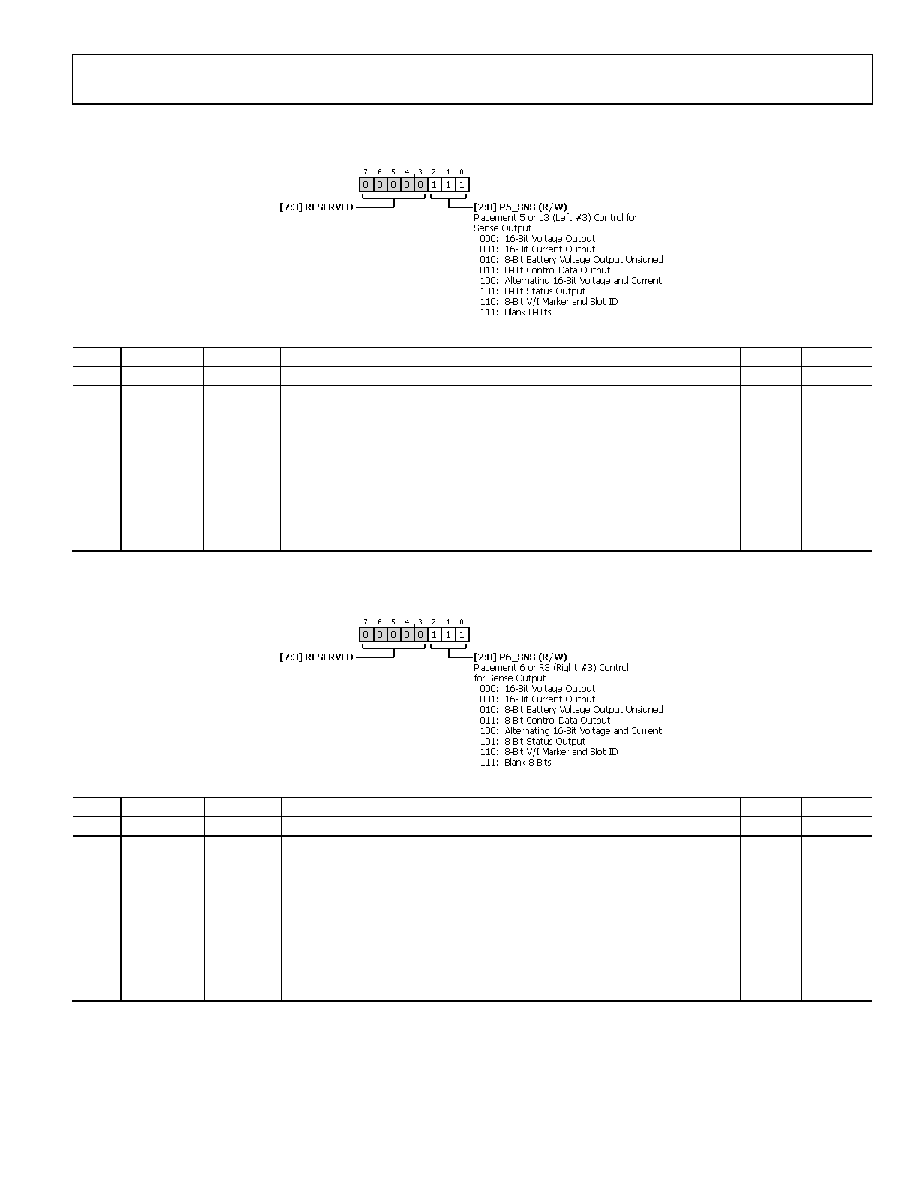

SERIAL AUDIO INTERFACE PLACEMENT 5 CONTROL REGISTER

Address: 0x0A, Reset: 0x07, Name: SAI_PLACEMENT_5

Table 36. Bit Descriptions for SAI_PLACEMENT_5

Bits

Bit Name

Settings

Description

Reset

Access

[7:3]

RESERVED

Reserved.

0x0

R/W

[2:0]

P5_SNS

Placement 5 or L3 (Left 3) Control for Sense Output

0x7

R/W

000

16-Bit Voltage Output

001

16-Bit Current Output

010

8-Bit Battery Voltage Output Unsigned

011

8-Bit Control Data Output

100

Alternating 16-Bit Voltage and Current

101

8-Bit Status Output

110

8-Bit V/I Marker and Slot ID

111

Blank 8 Bits

SERIAL AUDIO INTERFACE PLACEMENT 6 CONTROL REGISTER

Address: 0x0B, Reset: 0x07, Name: SAI_PLACEMENT_6

Table 37. Bit Descriptions for SAI_PLACEMENT_6

Bits

Bit Name

Settings

Description

Reset

Access

[7:3]

RESERVED

Reserved.

0x0

R/W

[2:0]

P6_SNS

Placement 6 or R3 (Right 3) Control for Sense Output

0x7

R/W

000

16-Bit Voltage Output

001

16-Bit Current Output

010

8-Bit Battery Voltage Output Unsigned

011

8-Bit Control Data Output

100

Alternating 16-Bit Voltage and Current

101

8-Bit Status Output

110

8-Bit V/I Marker and Slot ID

111

Blank 8 Bits
